Description
Three Newly Added Functions
Bluetooth Remote Control

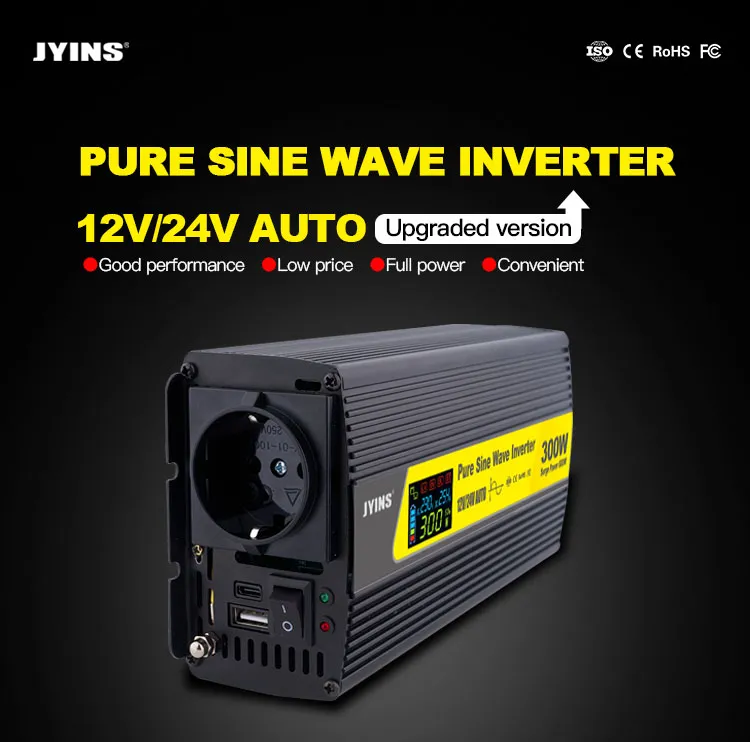

12v/24v Auto Switch

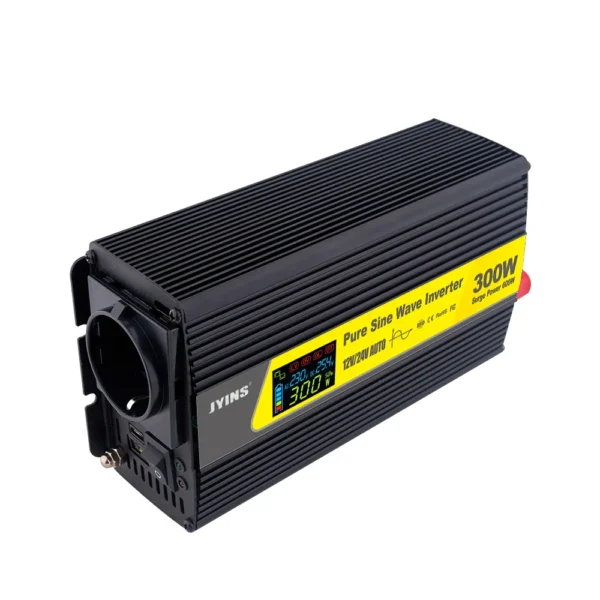

Core of Independent Power System-Inverter
The inverter, the core of an off-grid power system, supplies various power for some of your important appliances.
With batteries and the inverter, you can carry utility power with yourself to anywhere you want to go.
The added solar panel gives you another cost-saving and green energy source.
And it also gives you a real independent power supply.
Where there is the sun, there is the power.
High Quality
CE and RoHS Guaranteed.
Very low no-load current, less than or equal to 0.6A, 0.3A, 0.2A.
High conversion efficiency up to 88%, 90%, 92%.
Warranty: 1 year.
High Performance
Full-power running, with peak power double the continuous output.
Soft start to effectively maintain battery life.
Total harmonic distortion ≤ 3%.
12v/24v auto-switch means the inverter can adjust itself to match 12v working ba.

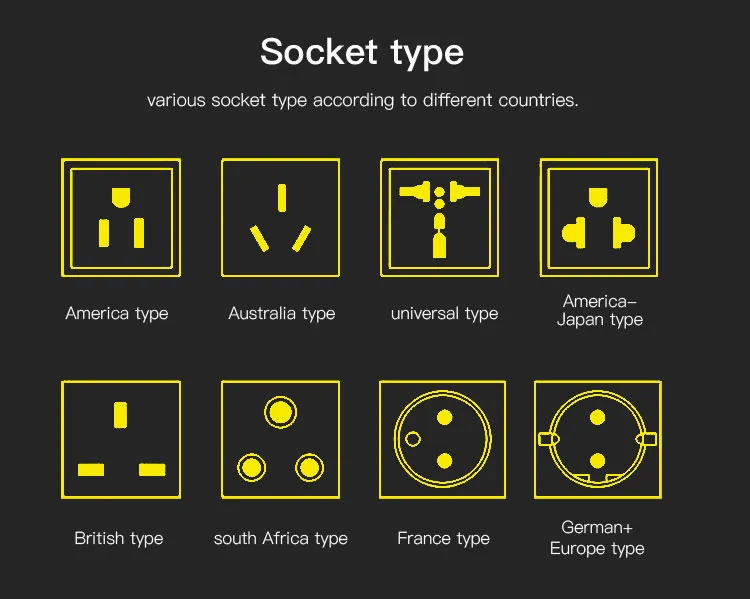

Various socket types for your option
Shell colors can be changed by you.
Optional alligator clips and cigarette lighter are for you to conduct easy battery connection.
USB ports supporting QC 3.0 fast charge (customized charging power is provided).
Easy to Install, Monitor and Control
Clear labels on the product panels help you install the product safely, easily, and quickly.
The edge of the inverter helps complete effortless installation.
LCD on the panel helps you monitor status of the inverter and battery connected.
The Bluetooth remote controller helps you control the inverter comfortably. And you can control your power just in a cozy sofa or anyplace you like.
High Protection

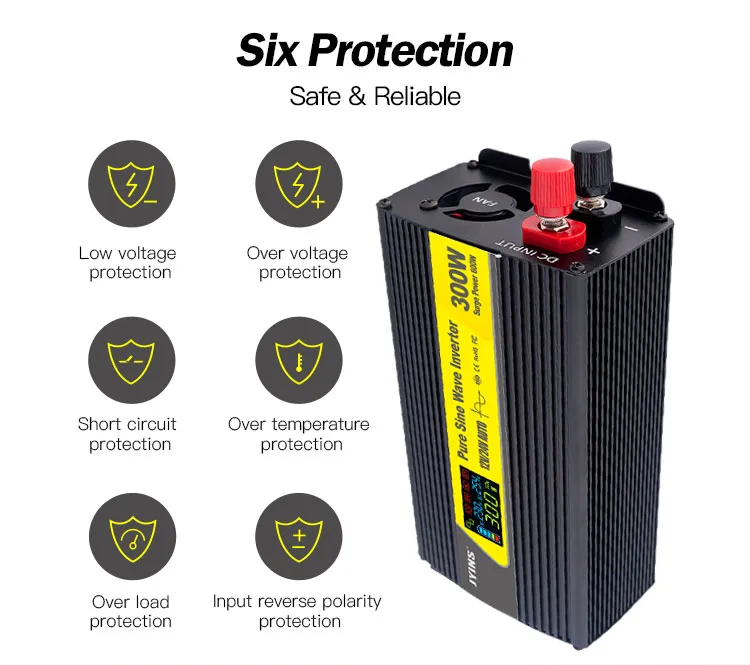

Six protection functions: low voltage protection, overvoltage protection, overload protection, overtemperature protection, short circuit protection, and input reverse polarity protection.
Grounding.

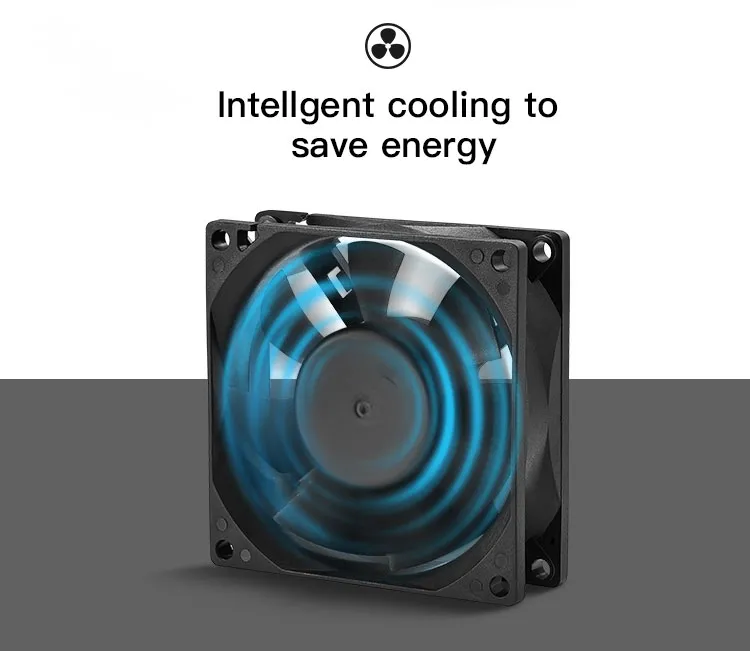

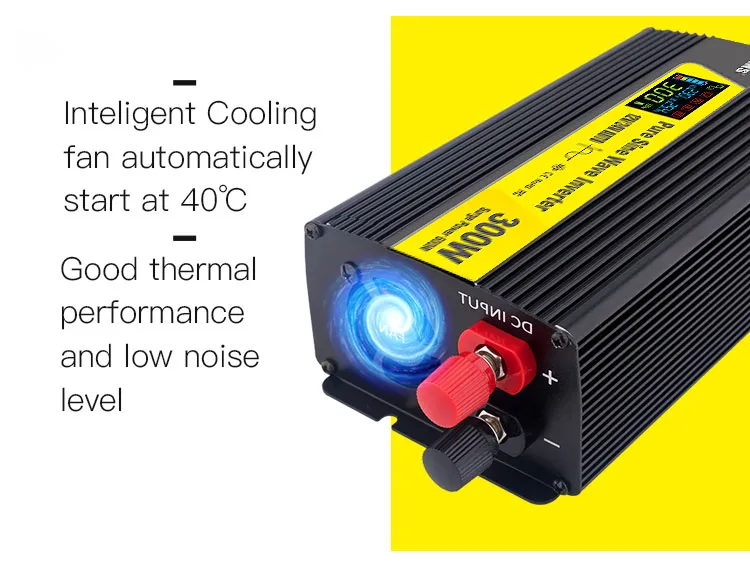

Intelligent cooling fans and vents of panels help dissipate heat.
LED and alarming systems help judge the product conditions to avoid potential dangers.
Aluminum housing, corrosion-resistant, impact-resistant, durable, and dissipates heat fast.
| Model | P-300W-12V | P-300W-24V | P-300W-48V |
| Output Power | 300W | ||
| Peak Power | 600W | ||
| DC Input Voltage Range | DC12V(9.5V-15.5V) | DC24V(19V-31V) | DC48V(38V-62V) |
| AC Output Voltage (Single Choice) | 100V/110V/120V/220V/230V/240V | ||
| Unload Current | ≤0.55A | ≤0.3A | ≤0.18A |
| Output Frequency | （50Hz±2Hz） or（ 60Hz±2Hz） | ||
| Output Waveform | Pure sine wave | ||
| Display | / | ||
| USB Output Votlage / Current | 5V 2A (Support QC3.0 fast charge up to 18W) | ||
| Max. Output Efficiency | 89% | 91% | 93% |
| Low Voltage Protection | Alarm “Bi” with 2s interval +red and green lights flashing alternately / restart automatically when voltage recover | ||
| Over Voltage Protection | Alarm “BiBi” with 1s interval +red and green lights flashing alternately / restart automatically when voltage recover | ||
| Over Load Protection | Alarm “Bi” continously +red light flashing / restart automatically when load power recover; If it is closed after twice recover, it need restart manually. | ||
| Over Temp Protection | Alarm “BiBiBi” with 1s interval +red and green lights flashing alternately / restart when temp recover | ||
| Short Circuit Protection | yes | ||
| DC Reverse Connection Protection | Fuse burnt | ||
| Low Voltage Alarm Range | 10.5v±0.5v | 21v±0.5v | 42v±0.5v |
| Low Voltage Protection Range | 9.5v±0.5v | 19v±0.5v | 38v±0.5v |
| Low Voltage Recover Range | 12v±0.5v | 23v±0.5v | 46v±0.5v |
| Over Voltage Protection Range | 15.5v±0.5v | 31v±0.5v | 62v±0.5v |
| Over Voltage Recover Range | 14v±0.5v | 28v±0.5v | 56v±0.5v |
| Working Temperature | -10℃~50℃ | ||
| Cooling Method | Fan cooling (Temperature control) | ||
| Note: The tech updates constantly. These datas are used for reference only. Please refer to our real product. | |||
