Basic knowledge of Solar Inverter Board

Components of solar inverter circuit boards

Solar inverter circuit boards are made up of several key components, each of which plays a vital role in the entire system. Here is a brief introduction to the main components and their functions:

1. Microcontroller
The microcontroller is the “brain” of the circuit board and is responsible for processing all control instructions and data. It monitors parameters such as voltage, current, and temperature, and adjusts the working state of the inverter to ensure stable operation of the system.

2. Power Semiconductor Devices
These devices include MOSFETs, IGBTs, etc., which are responsible for converting DC to AC and are the core components of the inverter. The performance of power semiconductor devices directly affects the efficiency and reliability of the inverter.

3. Transformer
The transformer is used for voltage conversion and isolation. It can boost low-voltage DC to higher-voltage AC, or vice versa. The design and quality of the transformer affects the efficiency and safety of power transmission.

4. Filters
Filters are used to eliminate high-frequency noise and harmonics in current and voltage to ensure the purity of output current and voltage. Common filters are inductors and capacitors.

5. Thermal Management System
The thermal management system includes components such as heat sinks, fans, and thermocouples, which are responsible for dissipating the heat generated during operation, preventing components from overheating, and ensuring the normal operation and service life of the inverter.

6. Input and Output Interfaces
These interfaces include terminal blocks and plugs, providing connection points to solar panels and load devices. Input interfaces are usually connected to solar panels, while output interfaces are connected to electrical devices or the grid.

7. Control and Protection Circuits
These circuits are responsible for monitoring and protecting the inverter from faults such as overload, short circuit, overvoltage, and overtemperature. They protect equipment and personnel safety by quickly disconnecting the circuit.

8. Communication Module
The communication module is used to exchange data with external devices (such as monitoring systems, computers). It can transmit data via Wi-Fi, Bluetooth, or wired connections, allowing users to monitor and control the inverter in real time.

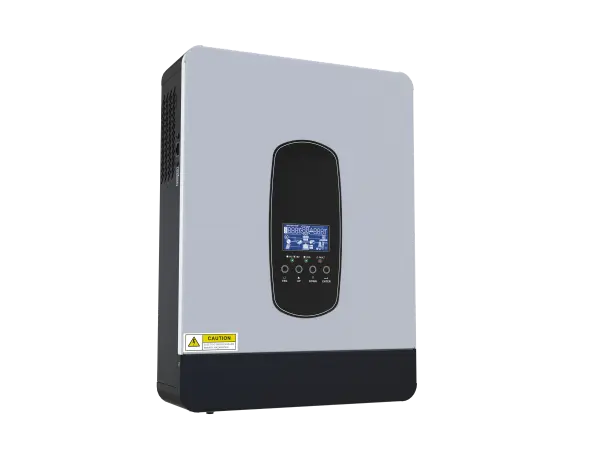

Hybrid Solar Inverter SP img4

Functions of each component

Understanding the function of each component is very important for understanding and maintaining the Solar Inverter Board. The following is a detailed functional description of each major component:

1. Microcontroller
Function: The microcontroller is the control center of the inverter and is responsible for executing and managing all operations. It receives data from sensors, processes information, and sends control signals to adjust the operating status of the system. The microcontroller ensures that the inverter can work stably and efficiently under various conditions.

2. Power Semiconductor Devices
Function: Power semiconductor devices, such as MOSFET and IGBT, are the core components of power conversion. They convert the direct current generated by solar panels into alternating current for home or commercial use. Efficient power semiconductor devices can reduce energy loss and improve conversion efficiency.

3. Transformer
Function: The transformer is used for voltage conversion and electrical isolation. It can boost direct current to the required AC voltage level, or convert high voltage to low voltage to meet the needs of different devices. At the same time, the transformer provides electrical isolation to protect the safety of the system and users.

4. Filters
Function: Filters are used to eliminate high-frequency noise and harmonics in the circuit to ensure smoother and more stable output current and voltage waveforms. Inductors and capacitors are common filter components that can reduce electromagnetic interference and improve power quality.

5. Thermal Management System
Function: The thermal management system includes heat sinks, fans, and thermocouples, which are responsible for effectively dissipating the heat generated during operation to prevent components from overheating. Good thermal management can extend the life of the inverter and ensure that it can operate efficiently without overheating.

6. Input and Output Interfaces
Function: These interfaces provide connection points to solar panels and load devices. The input interface connects to the solar panel and transmits DC power to the inverter. The output interface connects to the power device or the power grid and transmits the converted AC power. Good interface design ensures the reliability and safety of power transmission.

7. Control and Protection Circuits
Function: Control and protection circuits monitor the operating status of the inverter to prevent faults such as overload, short circuit, overvoltage and overtemperature. They can quickly disconnect the circuit when abnormal conditions are detected to protect equipment and personnel safety while extending the service life of the inverter.

8. Communication Module
Function: The communication module is used to exchange data with external monitoring systems or user devices. Through Wi-Fi, Bluetooth or wired connection, the communication module can transmit the operating data of the inverter, allowing users to monitor and control the inverter in real time and improve the intelligence level of the system.

Types of solar inverter circuit boards

Solar Inverter Board can be divided into many types according to different application scenarios and technical characteristics. The following are several common types of solar inverter circuit boards and their characteristics:

1. Stand-Alone Inverter Board

  • Features: Stand-Alone inverter circuit boards are mainly used for independent solar systems that are not connected to the grid. This type of circuit board has a simple design and is usually directly connected to the battery pack to convert DC power into AC power for home or small commercial use.
  • Application scenarios: rural areas far away from the grid, small power systems in remote areas, outdoor camping equipment, etc.

2. Grid-Tied Inverter Board

  • Features: Grid-Tied inverter circuit boards are used to connect the power generated by the solar system to the grid. This type of circuit board requires precise synchronization to ensure that the output AC power matches the voltage and frequency of the grid. Grid-tied inverters usually have anti-islanding function to ensure automatic disconnection in the event of a grid failure.
  • Application scenarios: urban residences, commercial buildings, large solar power stations, etc.

3. Hybrid Inverter Board

  • Features: Hybrid inverter boards combine the functions of standalone inverters and grid-connected inverters, and can work both in grid-connected and off-grid states. This type of board is usually equipped with a battery storage system that can store excess solar power and use it when needed to improve energy utilization.
  • Application scenarios: residential and commercial buildings with backup power needs, microgrid systems, etc.

4. Microinverter Board

  • Features: Microinverter boards are used for individual solar panels, each with an independent inverter. Microinverters improve the reliability and efficiency of the system because each panel can work independently and is not affected by the performance of other panels.
  • Application scenarios: small rooftop solar systems, complex roof structures, areas with more local shadows, etc.

5. String Inverter Board

  • Features: The multi-string inverter board connects multiple solar panels in series. This type of inverter is very common in medium and large solar systems. It has the advantages of high cost-effectiveness and easy maintenance, but the performance of the whole system may be affected by the performance of a single panel.
  • Application scenarios: medium and large rooftop solar systems, ground-mounted solar power stations, etc.

These different types of Solar Inverter Board have their own advantages and disadvantages in design and function, and are suitable for different application scenarios. Choosing the right type of circuit board can maximize the efficiency and reliability of the solar system.

Pros and cons of different types of circuit boards

Different types of solar inverter boards have their own advantages and disadvantages and are suitable for different application scenarios. The following is an analysis of the advantages and disadvantages of several common inverter boards:

1. Stand-Alone Inverter Board

Advantages:

  • Strong independence: No need to connect to the grid, suitable for remote areas and independent power systems.
  • Easy to use: Relatively simple to design and install, low maintenance cost.

Disadvantages:

  • Rely on batteries: Need to be equipped with large-capacity battery packs, the cost is high.
  • Low energy utilization: Excess solar power cannot be connected to the grid, and the waste may be large.

2. Grid-Tied Inverter Board

Advantages:

  • Efficient use of energy: Excess power can be connected to the grid, obtain electricity subsidies, and improve energy utilization.
  • No battery required: No energy storage equipment is required, reducing system costs.

Disadvantages:

  • Rely on the grid: The system cannot work when the grid is out of power.
  • Complex installation: Need to be synchronized with the grid, and the installation and configuration are complex.

3. Hybrid Inverter Board

Advantages:

  • High flexibility: It can be connected to the grid or off-grid, and can adapt to a variety of application scenarios.
  • Energy storage: Equipped with a battery storage system, it can store excess power and use it when needed.

Disadvantages:

  • High cost: The system is complex, and the installation and maintenance costs are high.
  • Difficult maintenance: Batteries and inverters need to be maintained regularly, and the technical requirements are high.

4. Microinverter Board

Advantages:

  • Independent operation: Each solar panel operates independently and is not affected by the performance of other panels, improving system reliability and efficiency.
  • Flexible installation: Adapt to complex roof structures and areas affected by local shadows.

Disadvantages:

  • High cost: Each panel is equipped with an inverter, and the overall cost is high.
  • Complex maintenance: Multiple inverters need to be maintained separately, which increases the complexity of maintenance.

5. String Inverter Board

Advantages:

  • High cost-effectiveness: Suitable for medium and large systems, cost-effective.
  • Easy maintenance: centralized management and maintenance, reducing maintenance workload.

Disadvantages:

  • Limited performance: system performance may be affected by a single panel. If the performance of a panel decreases, the output of the entire string will be affected.
  • Poor flexibility: not suitable for complex roof structures and areas with more local shadows.



These advantages and disadvantages make different types of Solar Inverter Board suitable for different application scenarios. When choosing an inverter circuit board, it is necessary to consider the specific needs and application environment comprehensively to achieve the best energy utilization effect and economic benefits.

Factors affecting the development of solar inverter circuit board technology

The development of solar inverter circuit board technology is affected by many factors. The following is an analysis of the main influencing factors:

1. Technological Innovation

  • Semiconductor technology: The progress of power semiconductor devices, such as MOSFET, IGBT, etc., directly affects the efficiency and reliability of the inverter.
  • Control algorithm: Advanced control algorithm and software optimization can improve the conversion efficiency and response speed of the inverter and reduce energy loss.
  • Intelligence and communication technology: The development of the Internet of Things (IoT) and intelligent control technology enables inverters to achieve remote monitoring and management, improving the intelligence level of the system.

2. Market Demand

  • Green energy demand: With the increase in global demand for renewable energy, the solar energy market has grown rapidly, promoting the innovation and development of inverter technology.
  • Cost pressure: The market competition is fierce, and companies need to continuously reduce production costs while improving product performance to meet market demand.

3. Policies and Regulations

  • Government incentive policies: Subsidies, tax incentives and incentive policies introduced by governments of various countries have promoted the development of the solar energy industry and driven the advancement of inverter technology.
  • Environmental regulations: Strict environmental regulations require inverters to have higher efficiency and lower environmental impact, which promotes technological improvements.

4. Materials Science

  • Application of new materials: The application of new thermal conductive materials, insulating materials and high temperature resistant materials improves the performance and reliability of inverters.
  • Cost control: Through the advancement of materials science, the cost of key components has been reduced, making inverters more economical and affordable.

5. Manufacturing Processes

  • Automated production: The application of automation and intelligent manufacturing technologies has improved production efficiency and product quality and reduced production costs.
  • Quality control: Advanced quality control technology and testing equipment ensure the high reliability and consistency of each inverter circuit board.

6. User Requirements

  • High efficiency requirements: Users hope that the inverter can maintain high efficiency under various conditions, which promotes the development of high-efficiency inverters.
  • Ease of use and reliability: Users require the inverter to be easy to operate, easy to maintain and highly reliable, which promotes the improvement of humanized design and reliability testing.

7. Environmental Factors

  • Climate change: Inverters need to operate stably under different environmental conditions, including extreme climates such as high temperature, low temperature, and high humidity, which has promoted the development of environmental adaptability technology.
  • Installation environment: Different installation environments (such as rooftops, ground, power stations, etc.) have different requirements for inverters, which has promoted the development of diversified products.
